Wurlitzer Style 225

Wurlitzer Style 225

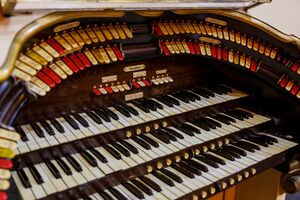

Typical console of a Style 225 (Photo from Pickwick Theatre - Park Ridge, Illinois)
Console Type	Curved Console
Bolsters	2
Manuals	3
Ranks	11
Tuned Percussions	6
Traps	14
Rank Information
Rank Name Lowest Pitch Notes Harmonic Tuba 16' 85 Pipes Diaphonic Diapason 16' 85 Pipes Tibia Clausa 8' 85 Pipes Clarinet 8' 61 Pipes Kinura 8' 61 Pipes Orchestral Oboe 8' 61 Pipes Violin 8' 73 Pipes Violin Celeste 8' 73 Pipes Salicional 8' 73 Pipes Concert Flute 16' 97 Pipes Vox Humana 8' 61 Pipes Marimba 49 Notes Cathedral Chimes 25 Notes Xylophone 37 Notes Glockenspiel 37 Notes Sleigh Bells 25 Notes Chrysoglott 49 Notes
Toe Pistons	Steamboat Whistle Horse Hoofs Bird Whistle Fire Gong Auto Horn Surf
General	Two Expression Pedals One Balanced Crescendo Pedal One Double Touch Sforzando Pedal - Piano Pedal - 1st Touch, Full Stops (wind) - 2nd Touch, Everything One Double Touch Sforzando Pedal - Piano Pedal - 1st Touch, Snare Drum - 2nd Touch, Bass Drum and Cymbal

Layout – Manuals & Touches

Pedal	Accompaniment	Accompaniment Second Touch	Great	Great Second Touch	Solo	Tremulants
1st & 2nd Touch Traps Switch	10 Adjustable Combination Pistons		10 Adjustable Combination Pistons		5 Adjustable Toe Pistons
3 Combination Toe Pistons
16' Tuba Profunda	16' Contra Viol (TC)	8' Harmonic Tuba	16' Tuba Profunda	16' Tuba Profunda	16' Tuba Profunda	Main
16' Diaphone	16' Bourdon	8' Diaphonic Diapason	16' Diaphone	8' Tibia Clausa	16' Diaphone	Solo
16' Bourdon	16' Vox Humana (TC)	8' Clarinet	16' Tibia Clausa (TC)	8' Clarinet	8' Harmonic Tuba	Tuba
8' Harmonic Tuba	8' Harmonic Tuba	Cathedral Chimes	16' Contra Viol (TC)		8' Diaphonic Diapason	Vox Humana
8' Diaphonic Diapason	8' Diaphonic Diapason	Xylophone	16' Bourdon		8' Tibia Clausa
8' Tibia Clausa	8' Tibia Clausa	Triangle	16' Vox Humana (TC)		8' Kinura
8' Clarinet	8' Clarinet		8' Harmonic Tuba		8' Orchestral Oboe
8' Cello	8' Kinura		8' Diaphonic Diapason		8' Salicional
8' Flute	8' Orchestral Oboe		8' Tibia Clausa		4' Harmonic Clarion
4' Octave	8' Violin		8' Clarinet		4' Octave
Bass Drum	8' Violin Celeste		8' Kinura		4' Piccolo
Kettle Drum	8' Salicional		8' Orchestral Oboe		Marimba (re-it)
Crash Cymbal	8' Flute		8' Violin		Cathedral Chimes
Cymbal	8' Vox Humana		8' Violin Celeste		Xylophone
	4' Octave		8' Salicional		Glockenspiel
	4' Piccolo		8' Flute		Sleigh Bells (re-it)
	4' Viol		8' Vox Humana
	4' Octave Celeste		4' Harmonic Clarion
	4' Salicet		4' Octave
	4' Flute		4' Piccolo
	4' Vox Humana		4' Viol
	2 2⁄3' Twelfth		4' Octave Celeste
	2' Piccolo		4' Salicet
	Marimba (re-it)		4' Flute
	Harp		2 2⁄3' Twelfth (Tibia)
	Chrysoglott		2 2⁄3' Twelfth
	Snare Drum		2' Piccolo (Tibia)
	Tambourine		2' Fifteenth
	Castanets		2' Piccolo
	Chinese Block		1 3⁄5' Tierce
	Tom Tom		Marimba (re-it)
			Harp
			Cathedral Chimes
			Sleigh Bells
			Xylophone
			Glockenspiel
			Sleigh Bells (re-it)
			Chrysoglott

List of Known Installations

Opus	Year Installed	Location	City	State	Country	Style	Wiring Schedule
1954		Pickwick Theatre	Park Ridge	Illinois	U.S.A.	225	896
